Purpose
In this blog, I will explain how Collegeboardās CPT requirements are implemented in my code, and how it has guided me when coding my feature, Packing Portal.

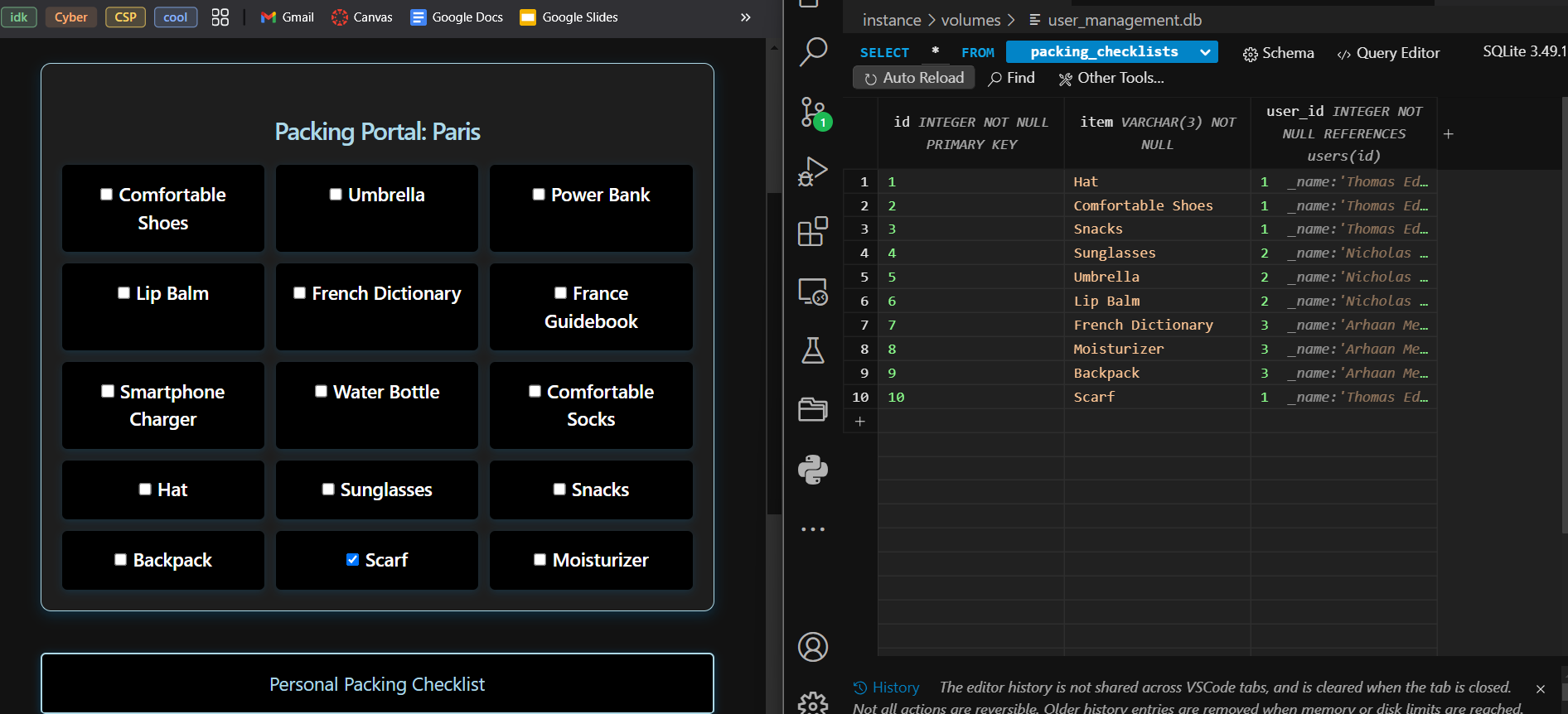

User Input Handling:
Checkbox Click
Here, when a checkbox is clicked, it calls the postPackingChecklists function with the string.
<div class="packing-item">
<input type="checkbox" id="packing-item-1" onclick="handleCheckboxClick(this, 'Comfortable Shoes')">
<label for="packing-item-1">Comfortable Shoes</label><br>
</div>
<div class="packing-item">
<input type="checkbox" id="packing-item-2" onclick="handleCheckboxClick(this, 'Umbrella')">
<label for="packing-item-2">Umbrella</label><br>
</div>
window.handleCheckboxClick = async function handleCheckboxClick(checkbox, itemText) {
await postPackingChecklist(itemText);
};
Posting Packing Items
My POST function will post the packing items to the database:
async function postPackingChecklist(itemText) {
const postData = {
item: itemText
};
try {
const response = await fetch(`${pythonURI}/api/packing_checklists`, {
...fetchOptions,
method: 'POST',
headers: {
'Content-Type': 'application/json'
},
body: JSON.stringify(postData),
});
if (!response.ok) {
throw new Error('Failed to add item: ' + response.statusText);
}
const data = await response.json();
console.log('Item added:', data);
return data;
} catch (error) {
console.error('Error adding item:', error);
alert('Error adding item: ' + error.message);
}
}

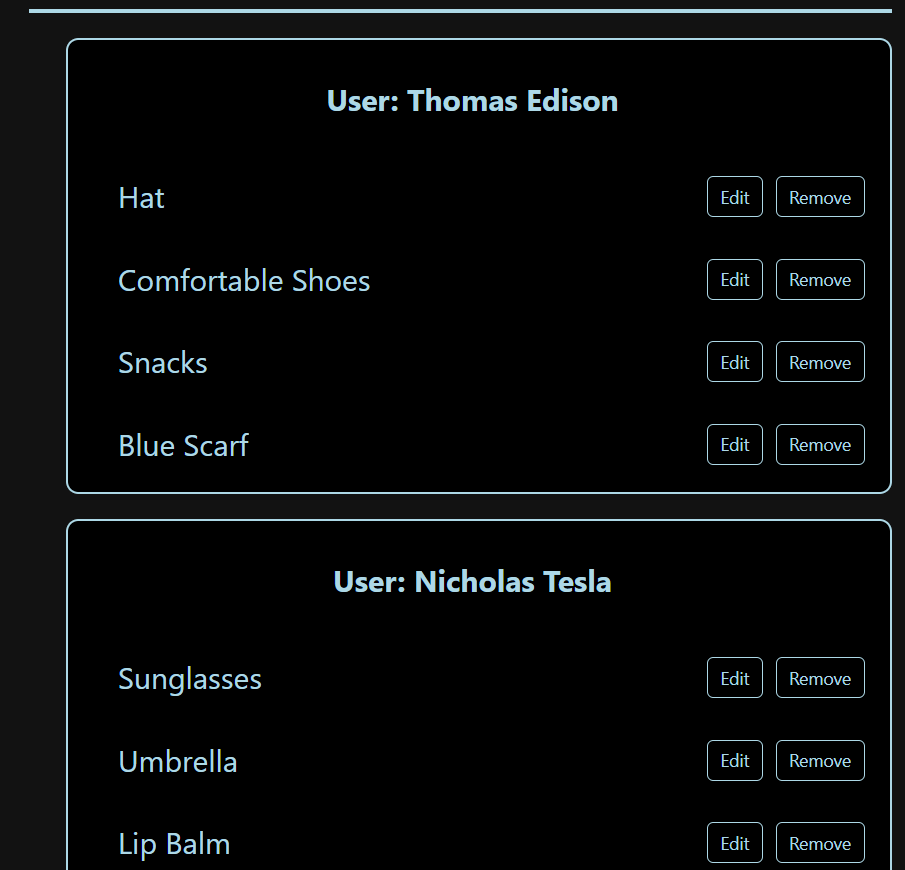

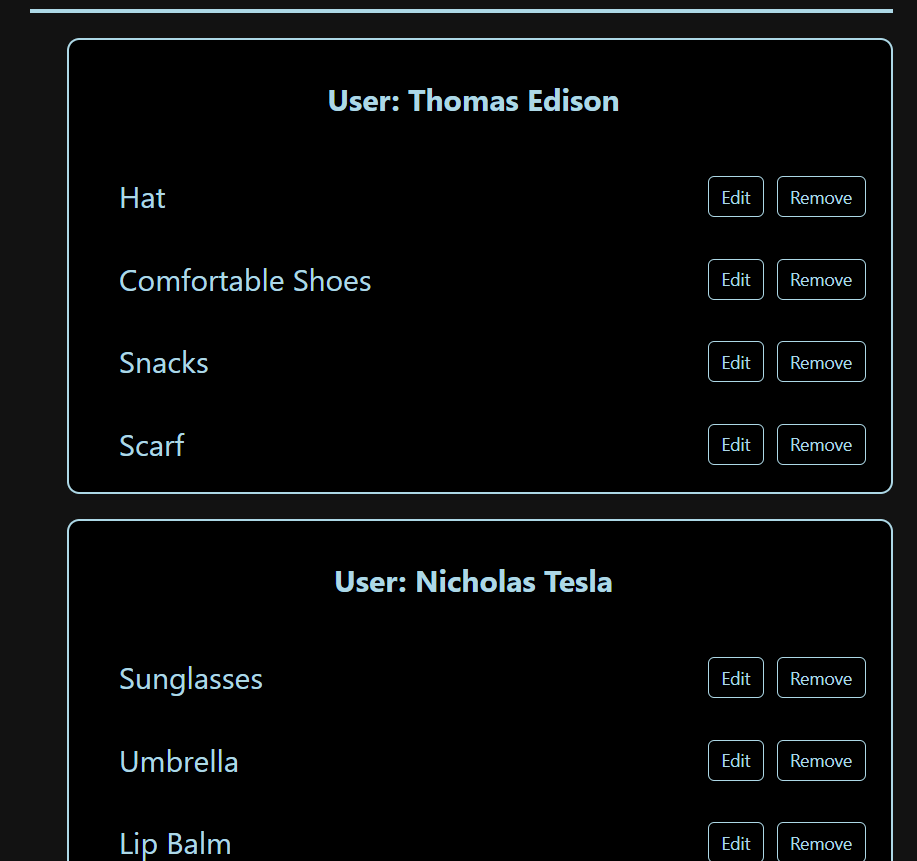

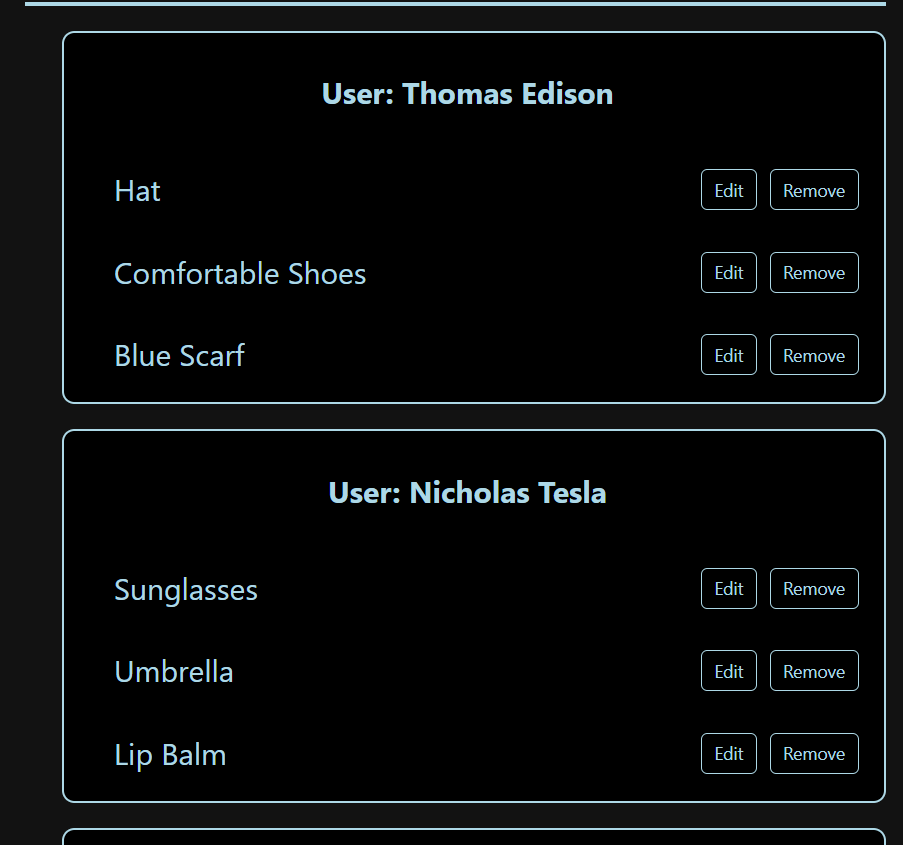

Displaying Packing Items
My GET request gets the packing data from the database, and then it is put into objects that are added to the DOM to be displayed:
async function getPackingChecklists() {
try {
const response = await fetch(`${pythonURI}/api/packing_checklists`, {
...fetchOptions,
method: 'GET',
});
if (!response.ok) {
throw new Error('Failed to fetch packing checklists: ' + response.statusText);
}
const data = await response.json();
console.log('Packing checklists get:', data);
const checklistArea = document.getElementById('checklist_area');
checklistArea.innerHTML = '';
let currentUser = data.length > 0 ? data[0].current_user : null;
let isAdmin = data.length > 0 ? data[0].is_admin : false;
// Filter items based on user role
const filteredData = isAdmin ? data : data.filter(item => item.user_id === currentUser);
// Group items by user
const groupedItems = {};
filteredData.forEach(item => {
if (!groupedItems[item.user_id]) {
groupedItems[item.user_id] = {
user_name: item.user_name || `User ${item.user_id}`, // Ensure we display something
items: []
};
}
groupedItems[item.user_id].items.push(item);
});
// Create sections for each user
Object.values(groupedItems).forEach(userGroup => {
// Create a section container
const userSection = document.createElement('div');
userSection.className = 'user-section';
// Create a section header with the user's name
const userHeader = document.createElement('h3');
userHeader.textContent = `User: ${userGroup.user_name.replace(/^User\s+/i, '')}`;
userHeader.className = 'user-section-header';
userSection.appendChild(userHeader);
// Create a list for the user's items
const userList = document.createElement('ul');
userList.className = 'user-checklist';
userGroup.items.forEach(item => {
const listItem = document.createElement('li');
listItem.className = 'checklist-item';
const nameSpan = document.createElement('span');
nameSpan.textContent = item.item;
// Create a container for buttons
const buttonContainer = document.createElement('div');
buttonContainer.className = 'button-container';
const editButton = document.createElement('button');
editButton.className = 'edit-button';
editButton.textContent = 'Edit';
editButton.addEventListener('click', () => {
enableEditing(item, listItem, nameSpan, editButton);
});
const removeButton = document.createElement('button');
removeButton.className = 'remove-button';
removeButton.textContent = 'Remove';
removeButton.addEventListener('click', () => {
deletePackingChecklist(item.id);
listItem.remove();
});
// Append buttons to the button container
buttonContainer.appendChild(editButton);
buttonContainer.appendChild(removeButton);
// Append everything to the checklist item
listItem.appendChild(nameSpan);
listItem.appendChild(buttonContainer);
userList.appendChild(listItem);
});
userSection.appendChild(userList);
checklistArea.appendChild(userSection);
});
} catch (error) {
console.error('Error fetching packing checklists:', error);
alert('Error fetching packing checklists: ' + error.message);
}
};
Initialize, Backup, and Restore
Here is my initialize function which adds tester data to the database:
def initPackingChecklist():
with app.app_context():
db.create_all()
test_data = [
Weather(item="Hat", user_id=1),
Weather(item="Comfortable Shoes", user_id=1),
Weather(item="Snacks", user_id=1),
Weather(item="Sunglasses", user_id=2),
Weather(item="Umbrella", user_id=2),
Weather(item="Lip Balm", user_id=2),
Weather(item="French Dictionary", user_id=3),
Weather(item="Moisturizer", user_id=3),
Weather(item="Backpack", user_id=3),
]
for data in test_data:
try:
db.session.add(data)
db.session.commit()
print(f"Record created: {repr(data)}")
except Exception as e:
db.session.rollback()
print(f"Error creating record for user {data.user_id}: {e}")
If I want to backup or restore:
./scripts/db_backup.py
./scripts/db_restore.py
List or Collection Usage
Lists
Here is my GET function in the backend, which returns a list of the packing item and user when queried:
@token_required()
@cross_origin(supports_credentials=True)
def get(self):
weather_id = request.args.get('id')
if weather_id:
weather = Weather.query.get(weather_id)
if not weather:
return {'message': 'Weather not found'}, 404
return jsonify(weather)
current_user = g.current_user
is_admin = current_user.role == 'Admin'
all_items = db.session.query(Weather, User).join(User, Weather.user_id == User.id).all()
item_list = [{"id": item.Weather.id, "user_id": item.User._name, "current_user": current_user._name, "is_admin": is_admin, "item": item.Weather.item} for item in all_items]
return jsonify(item_list)
Lists and Dictionaries (CRUD)
Here are my CRUD operations in the backend, where dictionaries and lists are used:
def create(self):
try:
db.session.add(self)
db.session.commit()
except Exception as e:
db.session.rollback()
raise e
return self
def read(self):
return {
"id": self.id,
"item": self.item,
"user_id": self.user_id
}
def update(self, data):
self.item = data.get('item', self.item)
self.user = data.get('user_id', self.user_id)
try:
db.session.commit()
except Exception as e:
db.session.rollback()
raise e
def delete(self):
try:
db.session.delete(self)
db.session.commit()
except Exception as e:
db.session.rollback()
raise e
@staticmethod
def restore(data):
for packing_item in data:
packing_id = packing_item.pop('id', None) # Remove 'id' from post_data
if packing_id is not None:
item = Weather.query.get(packing_id)
if item:
item.update(packing_item)
else:
item = Weather(**packing_item)
item.create()
else:
item = Weather(**packing_item)
item.create()
Based on my code, the usage of lists and other collection types are clear.
Student-Developed Procedure:
One part of my feature was a weather api, which would get real-time weather data for a certain city:
def get(self):
# retrieve the weather data for the latitude and longitude of a city
lat = request.args.get('lat', '') # get the latitude of the city from the query parameters
lon = request.args.get('lon', '') # get the longitude of the city from the query parameters
weather_data = get_weather_data(lat, lon)
if weather_data:
return jsonify(weather_data)
else:
return jsonify({"error": "Failed to get weather data"}), 500
# add the resource for /weather
api.add_resource(_Weather, '/weather')
def get_weather_data(lat, lon):
# get the weather data for the latitude and longitude of a city
api_url = weather_api_url.format(lat, lon)
response = requests.get(api_url, headers={'X-Api-Key': api_key})
if response.status_code == requests.codes.ok:
return response.json()
else:
print("Error:", response.status_code, response.text)
return None
async function fetchWeatherData() {
try {
// fetch weather data for Paris using its latitude and longitude
const response = await fetch(`${pythonURI}/api/weather?lat=48.8566&lon=2.3522`);
// check if response is ok
if (!response.ok) {
throw new Error(`HTTP error! status: ${response.status}`);
}
// convert the response to JSON
const weatherData = await response.json();
// displaying the weather info
displayWeatherInfo(weatherData);
} catch (error) {
console.error('Error fetching weather data:', error);
}
};
In addition, through my CRUD operations, I added a feature to save packing items, where users can see the items in a personal checklist. It also contains admin functionality, allowing users to see their own list, while admins can see all lists:
async function getPackingChecklists() {
try {
const response = await fetch(`${pythonURI}/api/packing_checklists`, {
...fetchOptions,
method: 'GET',
});
if (!response.ok) {
throw new Error('Failed to fetch packing checklists: ' + response.statusText);
}
const data = await response.json();
console.log('Packing checklists get:', data);
const checklistArea = document.getElementById('checklist_area');
checklistArea.innerHTML = '';
let currentUser = data.length > 0 ? data[0].current_user : null;
let isAdmin = data.length > 0 ? data[0].is_admin : false;
console.log("Current user:", currentUser);
console.log("Is admin:", isAdmin);
// Filter items based on user role
const filteredData = isAdmin ? data : data.filter(item => item.user_id === currentUser);
// Group items by user
const groupedItems = {};
filteredData.forEach(item => {
if (!groupedItems[item.user_id]) {
groupedItems[item.user_id] = {
user_name: item.user_name || `User ${item.user_id}`, // Ensure we display something
items: []
};
}
groupedItems[item.user_id].items.push(item);
});
// Create sections for each user
Object.values(groupedItems).forEach(userGroup => {
// Create a section container
const userSection = document.createElement('div');
userSection.className = 'user-section';
// Create a section header with the user's name
const userHeader = document.createElement('h3');
userHeader.textContent = `User: ${userGroup.user_name.replace(/^User\s+/i, '')}`;
userHeader.className = 'user-section-header';
userSection.appendChild(userHeader);
// Create a list for the user's items
const userList = document.createElement('ul');
userList.className = 'user-checklist';
userGroup.items.forEach(item => {
const listItem = document.createElement('li');
listItem.className = 'checklist-item';
const nameSpan = document.createElement('span');
nameSpan.textContent = item.item;
// Create a container for buttons
const buttonContainer = document.createElement('div');
buttonContainer.className = 'button-container';
const editButton = document.createElement('button');
editButton.className = 'edit-button';
editButton.textContent = 'Edit';
editButton.addEventListener('click', () => {
enableEditing(item, listItem, nameSpan, editButton);
});
const removeButton = document.createElement('button');
removeButton.className = 'remove-button';
removeButton.textContent = 'Remove';
removeButton.addEventListener('click', () => {
deletePackingChecklist(item.id);
listItem.remove();
});
// Append buttons to the button container
buttonContainer.appendChild(editButton);
buttonContainer.appendChild(removeButton);
// Append everything to the checklist item
listItem.appendChild(nameSpan);
listItem.appendChild(buttonContainer);
userList.appendChild(listItem);
});
userSection.appendChild(userList);
checklistArea.appendChild(userSection);
});
} catch (error) {
console.error('Error fetching packing checklists:', error);
alert('Error fetching packing checklists: ' + error.message);
}
};
Must have a defined name and return type
The get(), post(), put(), and delete() functions will update the database, and will either return a success message or an error.
Must use at least one parameter that affects functionality
My fetchWeatherData() function fetches the weather data based on the longitude and latitude of a city. The outputs will be different based on the city. In addition, the packing items that are posted to the database will be different based on the items selected.
Algorithm Implementation:
Sequencing
- The user POSTs a packing item, GETs the packing items in their list, edits (PUT) a packing item from the list, or DELETEs a packing item.
- From the frontend, the request is sent to the backend
- Based on the type of request, the backend will perform the task
- The backend returns a response back to the frontend.
- The frontend receives the response and updates the frontend dynamically.
Selection
I used selection in my POST function to check if all the data is present when posting to the database:
if not data or 'item' not in data:
return {'message': 'Required information not entered'}, 400
Iteration
For each user that selected an item, I loop through each item they selected and display it:
userGroup.items.forEach(item => {
const listItem = document.createElement('li');
listItem.className = 'checklist-item';
const nameSpan = document.createElement('span');
nameSpan.textContent = item.item;
// Create a container for buttons
const buttonContainer = document.createElement('div');
buttonContainer.className = 'button-container';
const editButton = document.createElement('button');
editButton.className = 'edit-button';
editButton.textContent = 'Edit';
editButton.addEventListener('click', () => {
enableEditing(item, listItem, nameSpan, editButton);
});
const removeButton = document.createElement('button');
removeButton.className = 'remove-button';
removeButton.textContent = 'Remove';
removeButton.addEventListener('click', () => {
deletePackingChecklist(item.id);
listItem.remove();
});
// Append buttons to the button container
buttonContainer.appendChild(editButton);
buttonContainer.appendChild(removeButton);
// Append everything to the checklist item
listItem.appendChild(nameSpan);
listItem.appendChild(buttonContainer);
userList.appendChild(listItem);
});
Program Output:
Here are the different visual outputs:
Commenting and Acknowledgment:
Comments are present in my code to explain how it works and what each part does.
